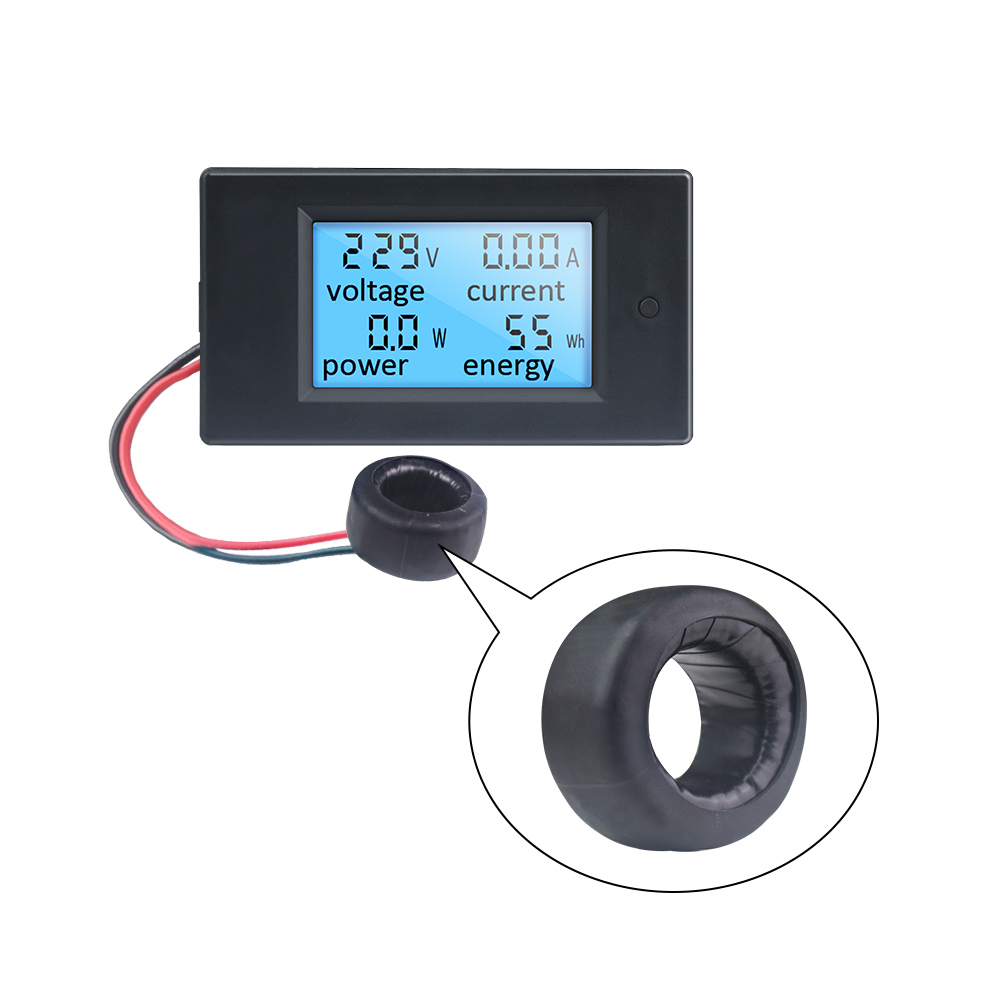

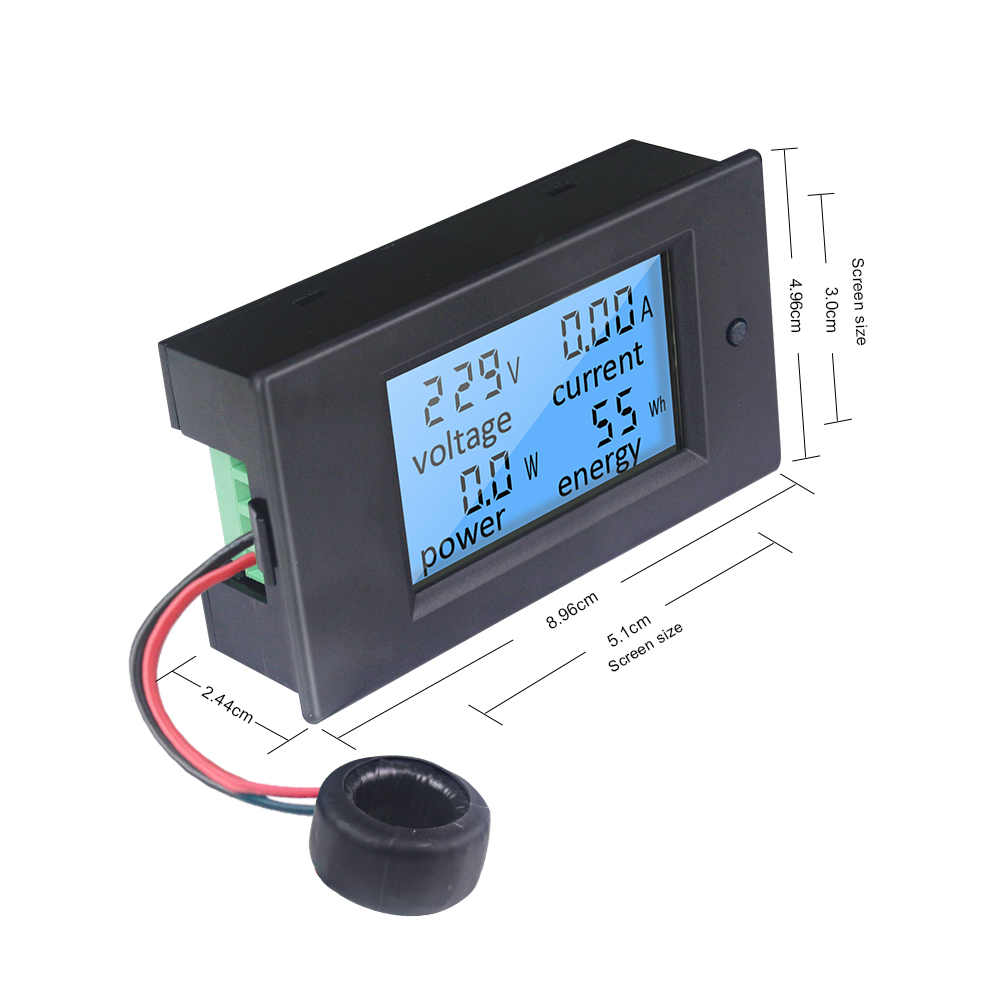

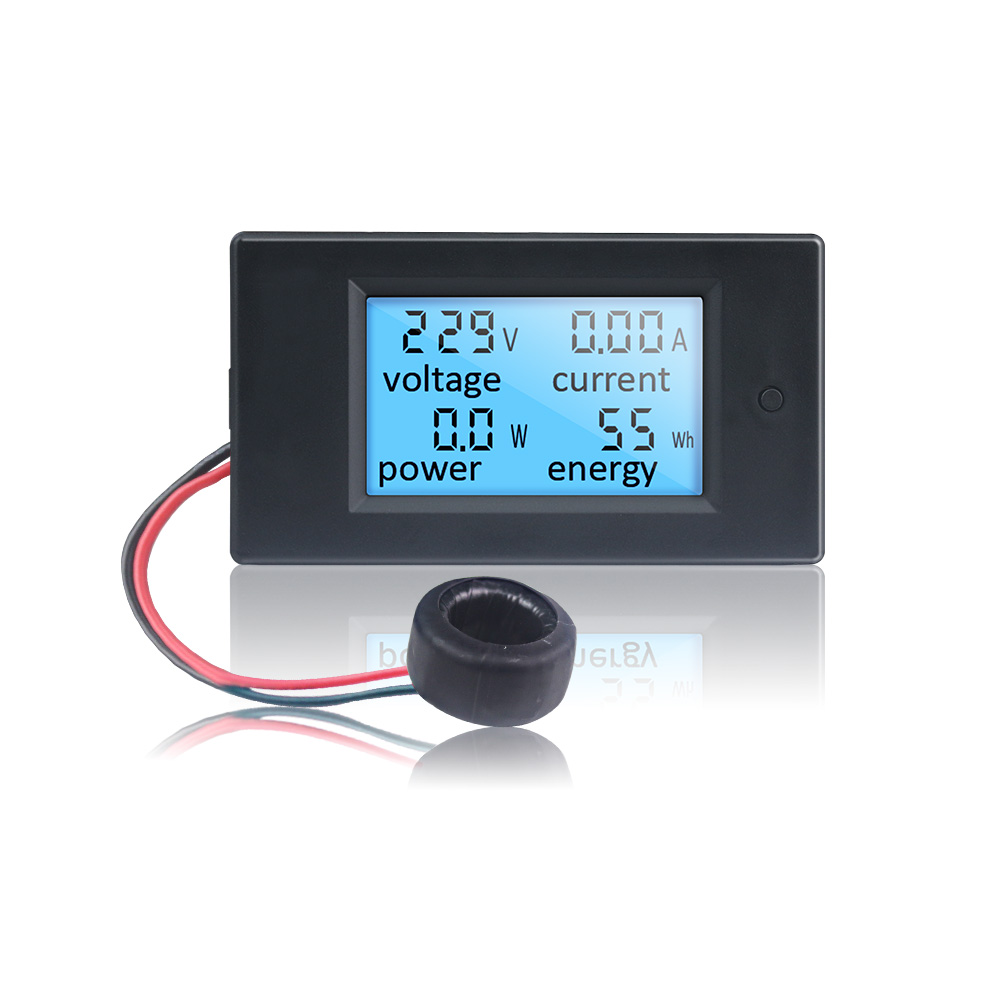

KT-D135 AC Voltmeter Ammeter 80-260V 100A LCD Display Digital Volt Amp Meter Wattmeter Energy Gauge with Current Transformer CT

This meter can only be used with single-phase AC power. And it can only measure the active power(real power), no Apparent power.

Test Range: 1. Working voltage: 80 ~ 260VAC

2. Test voltage: 80 ~ 260VAC

2. Rated power: 100A / 22000W

3. Working Frequency: 45-65Hz

4. Measurement accuracy: 1.0

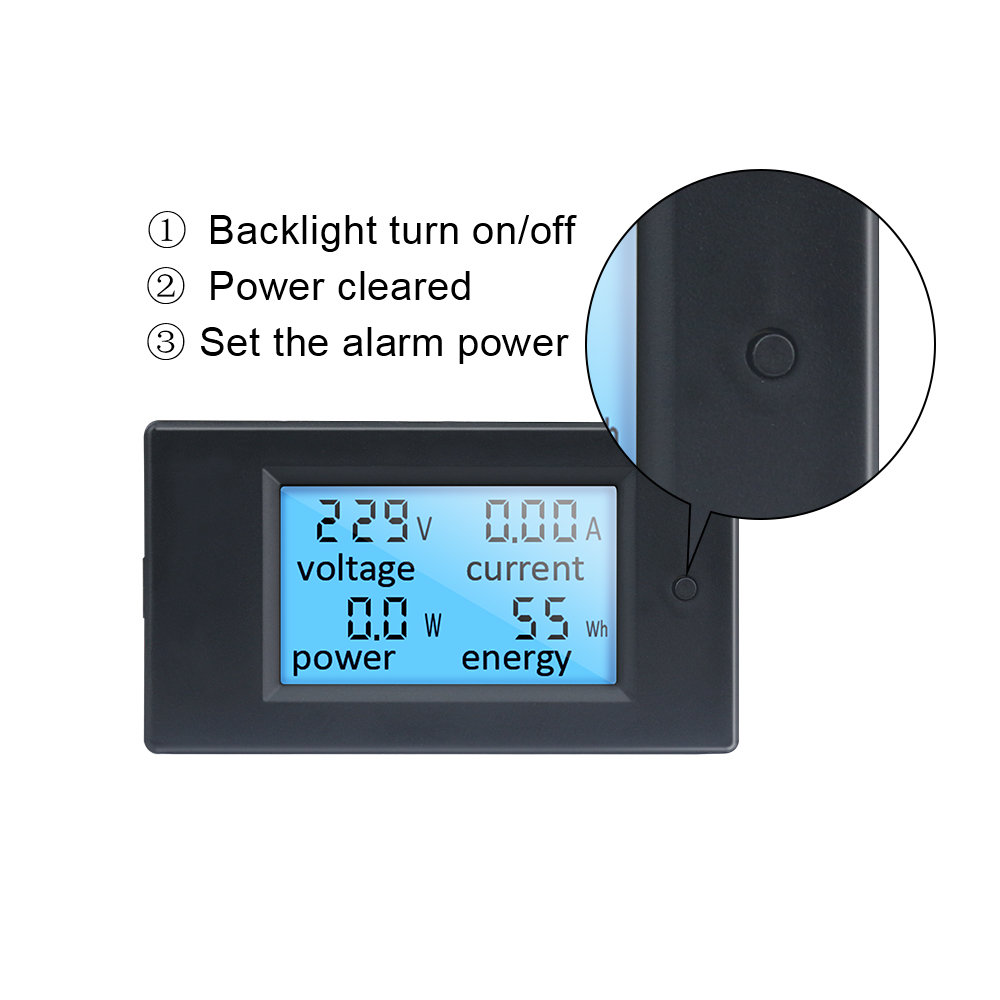

Button Description

1. The backlight control

By short press the button to turn on or off the backlight, the backlight status automatic storage.

2. The power cleared

Step 1: Press the power button 5 seconds until the digital display window flashes, then release the button;

Step 2: If you press the button again, the consumption data is cleared and cleared quit flashing;

Step 3: If you press the button again 5 seconds long until no flashing, the charge data is not cleared and exit cleared.

3. The power to set the alarm value

Step 1: Press the button, when the LCD screen display "SET CLr" after the release button, set the value into the power status report;

Step 2: Power area displays the current value of the power alarm and the lowest digit starts blinking, then you can press the button of the digital +1, when there is no key operation more than three seconds, automatically switches by short digital set as above;

Step 3: After setting, press the button more than five seconds to automatically save and exit, the scope of active power threshold set for the 0.0 ~ 22.0kW.

Note

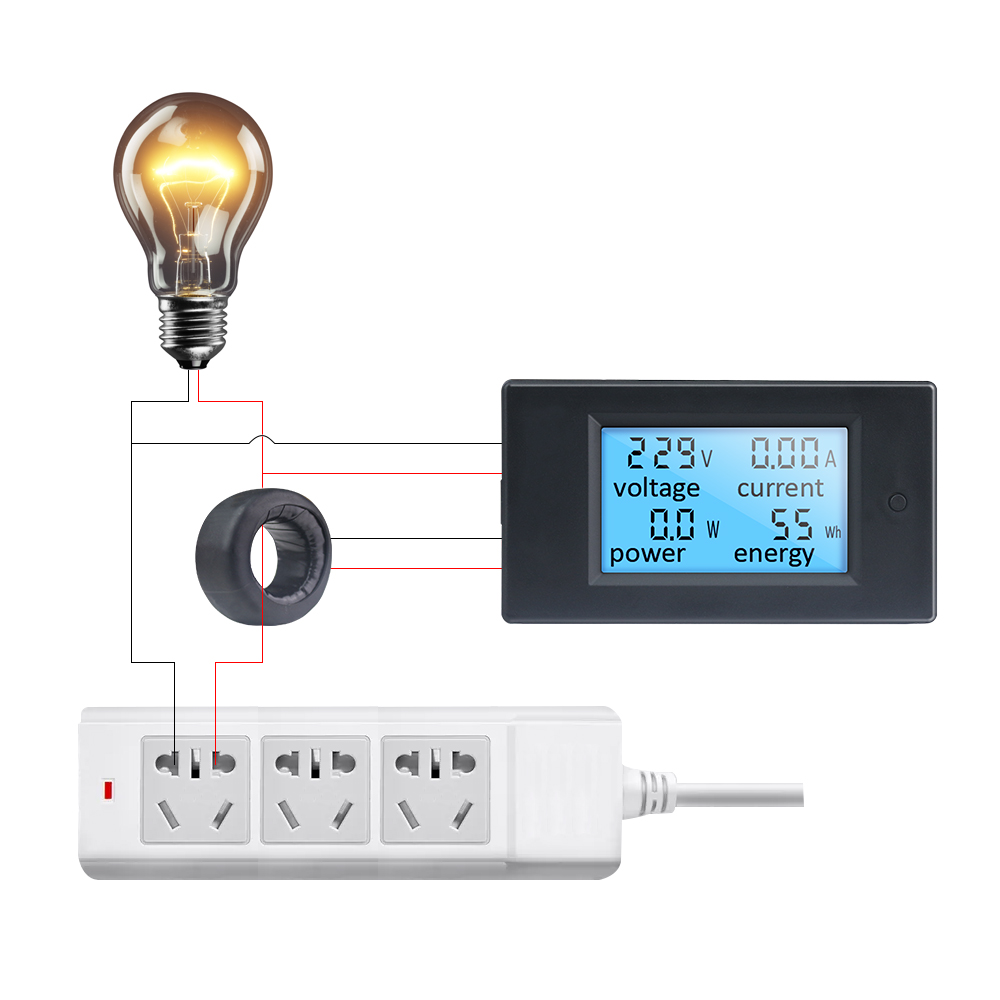

This voltmeter is easy to connect, it is suitable for indoor, please don't use outdoor. Please connect according to the wiring diagram. This product is not suitable for inverter, unless you have tested that the waveform and frequency of the inverter are exactly the same as the mains, and there is no excessive glitch interference. This voltmeter cannot be used in autotransformer, thyristor circuit or load.
