KETOTEK 3 phases Electricity Meter AC Amp Volt Power Energy Monitor Top Hat Din Rail Bidirectional Wattmeter Power Consumption Input Output kWh 3x230V/400V 10(100)A 50/60Hz

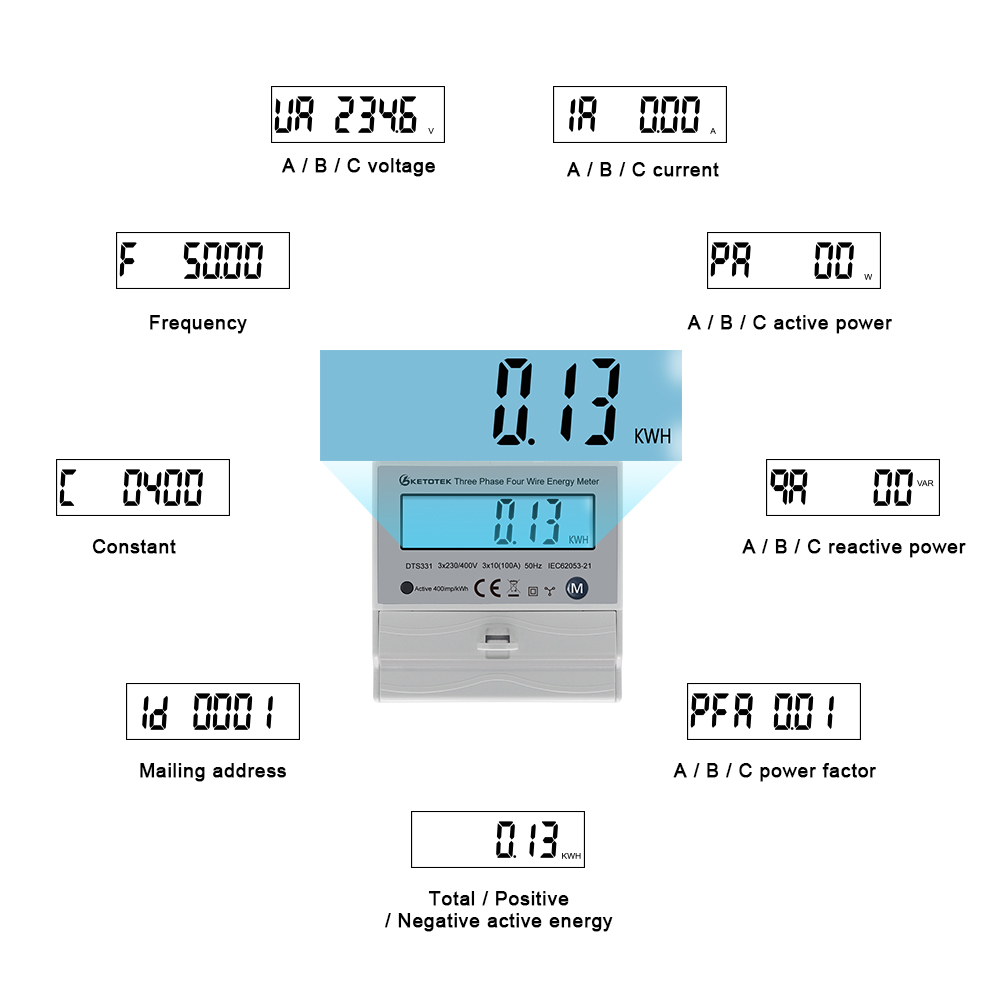

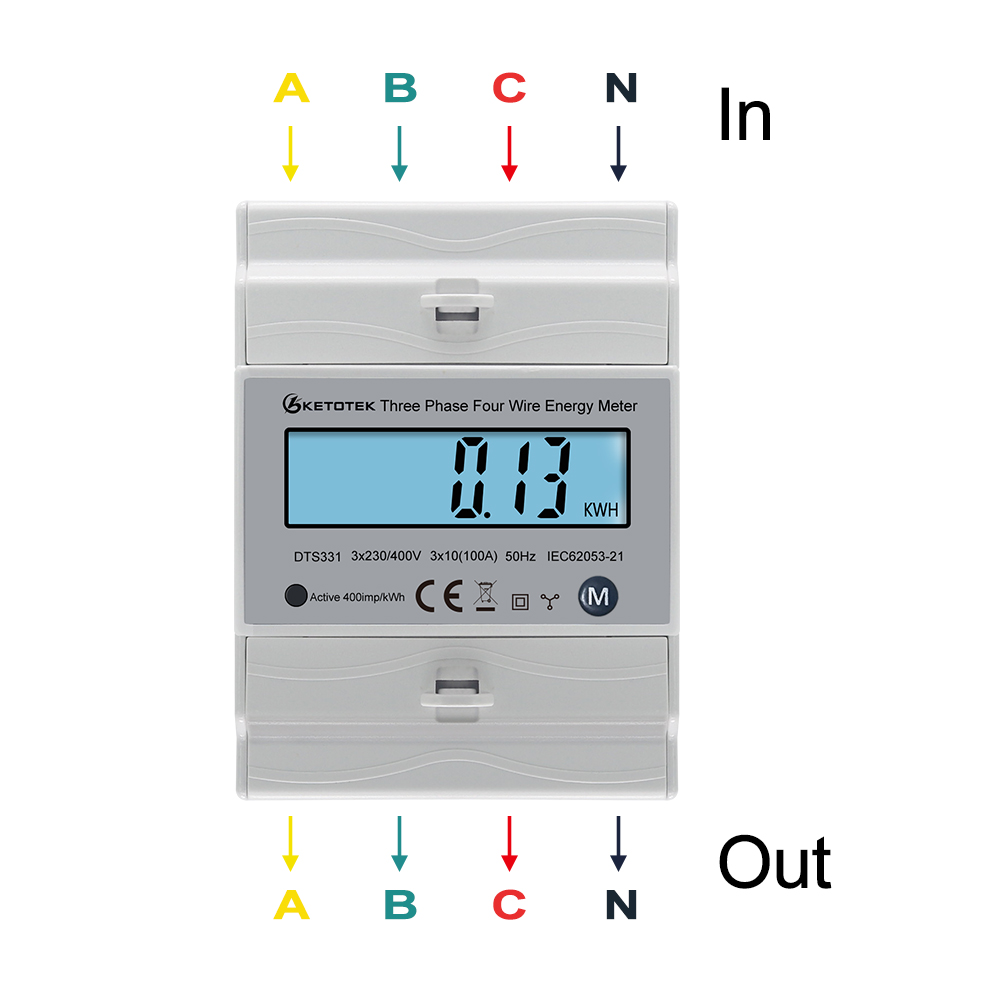

【3 Phase 4 Wire Electric Meter】Measure AC energy with a rated frequency , and display of various parameters. Press the button M, Three-phase meter can show the A, B, C Phase voltage, current, positive/negative active power , power factor, frequency, and other information
-
Functions and features
1.35mm DIN standard rail mounting.

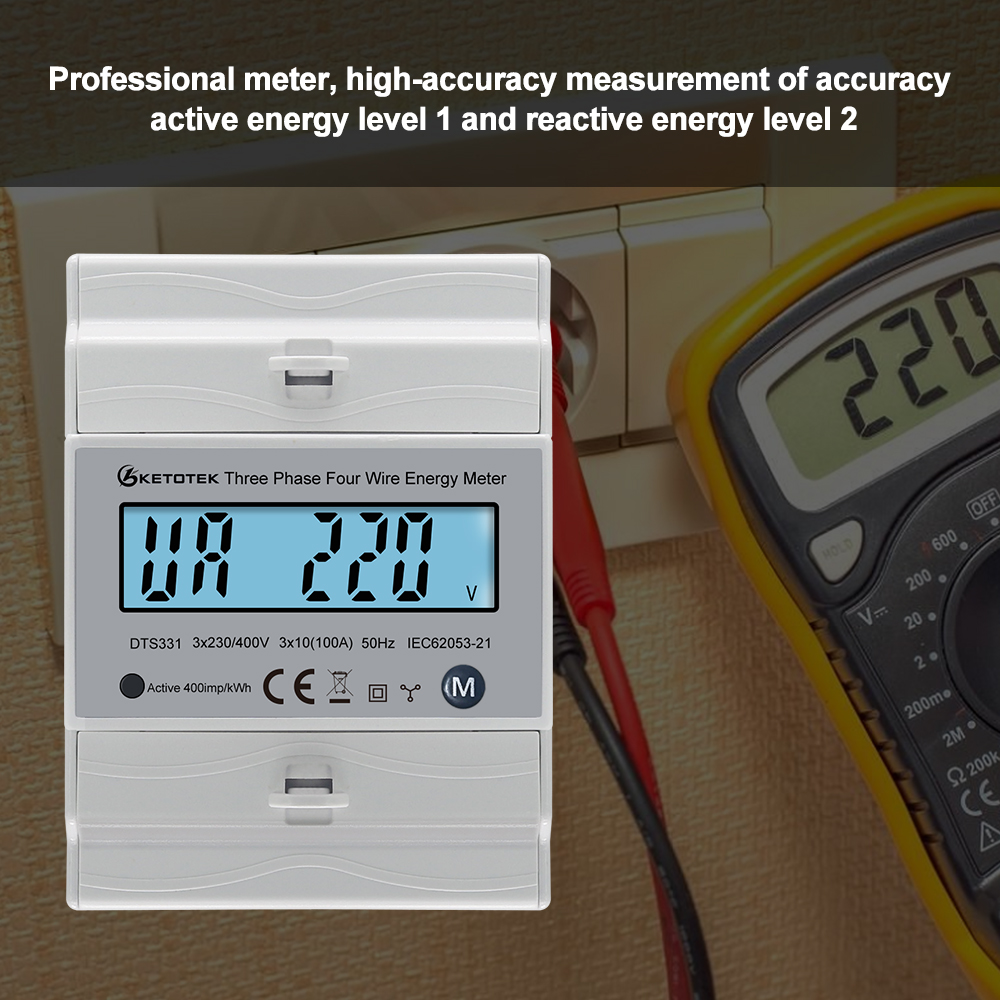

2. High-accuracy measurement of active energy level 1 and reactive energy level 2.
3.LCD backlight display .
4.LED indicates pulse output, passive pulse output.
5. Various parameters can be quickly inquired through the keys.
6. With active bidirectional energy, reactive energy measurement, display current, voltage, power factor and other functions.
Technical parameter
Rated voltage: 3x230/400V
Rated current: 10(100)A
Input frequency: 50/60Hz
Starting current: 0.4%1b
Working power: 3x230VAC+20%
Power consumption: <2W/ 10VA per phase
Accuracy: Class 1

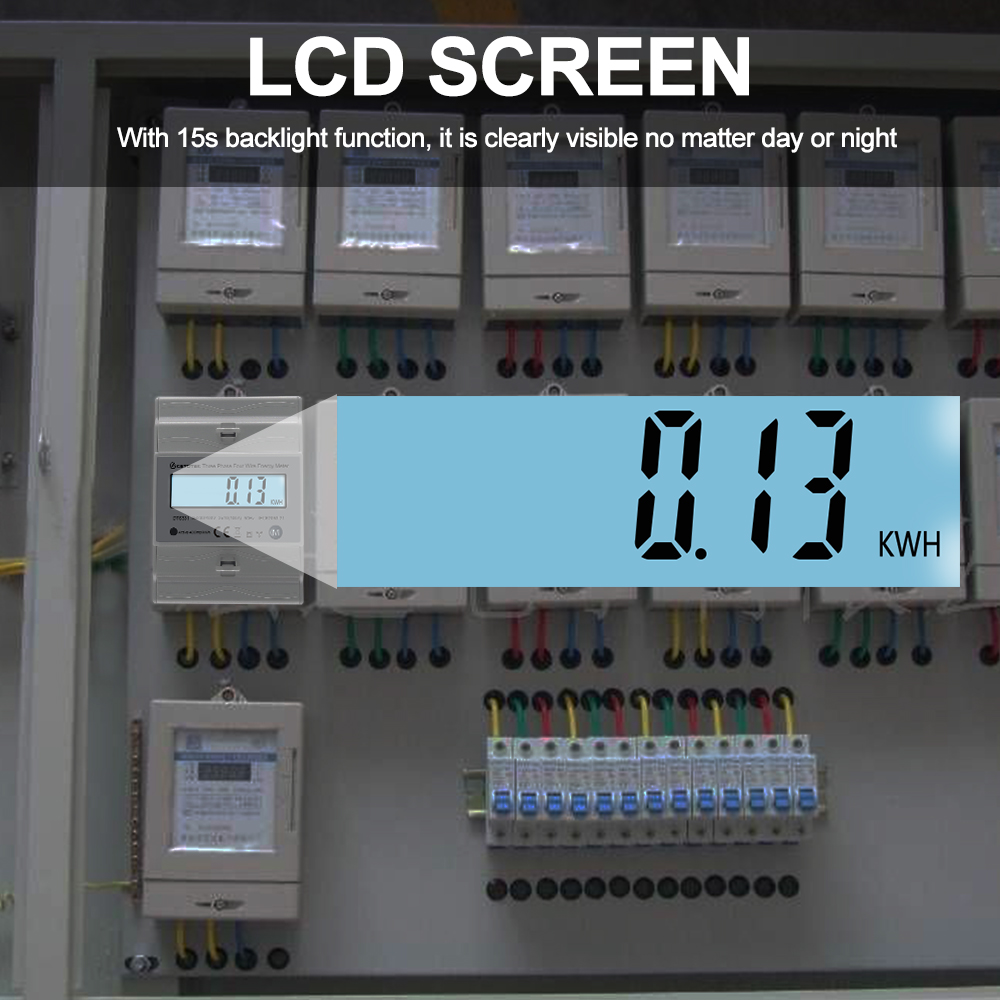

LCD backlight: 15 seconds
Dimensions: 96x72x68mm (L x W X H)

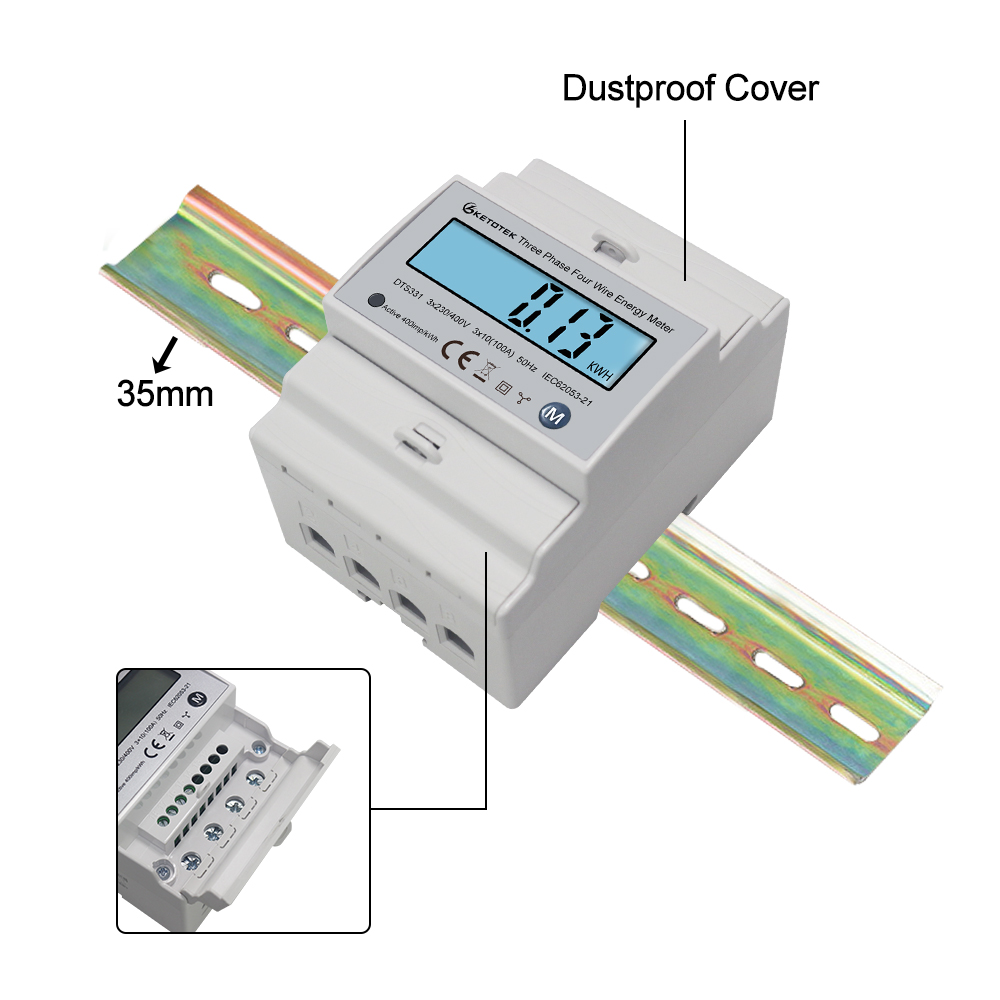

Installation method: 35mm standard din rail
Working temperature: -10C ~+55 C
Storage temperature: -40 C~+70 C
Relative humidity: 5%~95%
Pulse output indicator: the indicator flashes once, indicating the pulse output synchronously.
