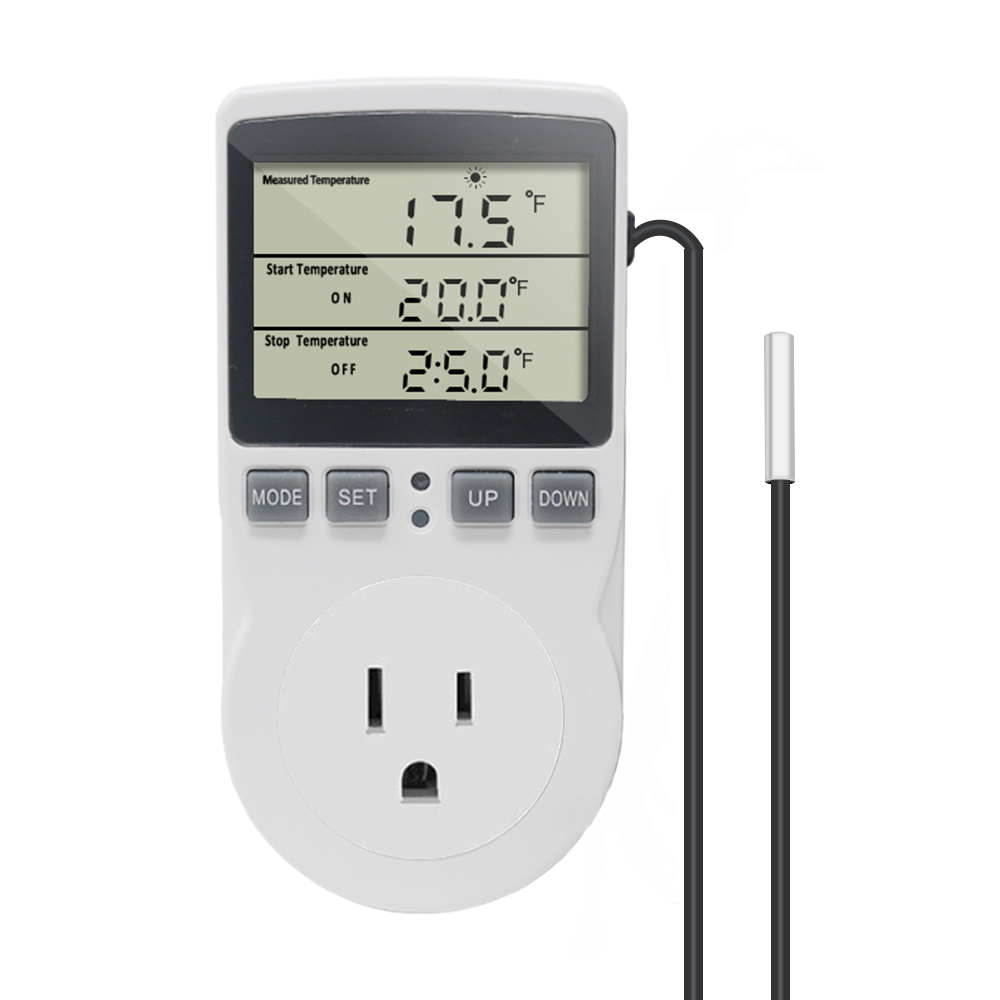

KT3100 Digital Thermostat Socket Incubator Temperature Controller Outlet With Timer Switch 16A 220V for Heating
-
KT3100 Digital Thermostat Socket Incubator Temperature Controller Outlet With Timer Switch 16A 220V for Heating Pad Heat Mat
Note: Please check carefully of the picture for the EU type and FR Type, and choose the one fits you.

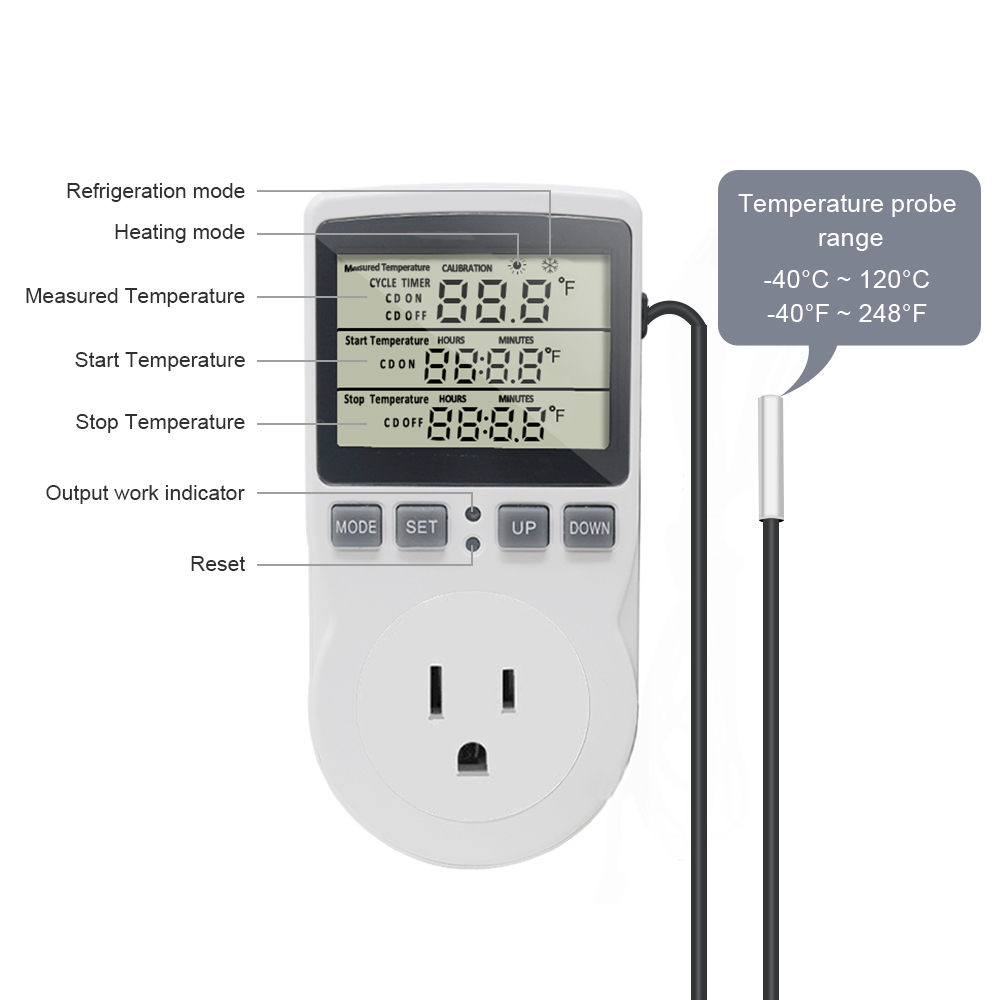

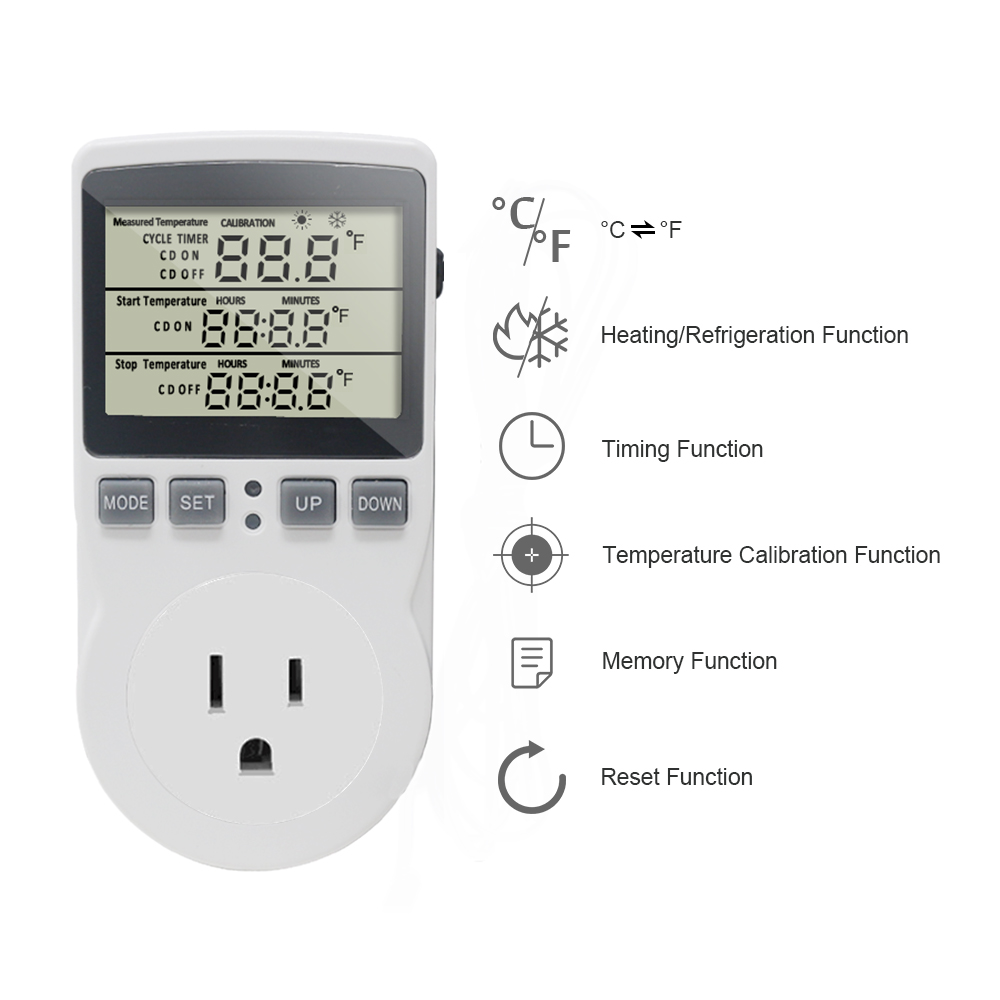

1. Function
The external temperature detector can detect the temperature
Set the start and stop temperature
Cycle timing, start and stop time, timer switch
It is widely used in intelligent control, such as carbon heating, aquaculture,greenhouse, home life and other places.
2. Technical parameters
Voltage 100-250V AC 50Hz
Max Load: 16A(2) 3680W.u (15A for US type )
Temperature Range: -40~120°C
Accuracy: +/- 1%
Timing Accuracy: MAX 10 minutes
Temperature range: -40~120°C
Open circuit (or less than -40°C), the first row of the screen flashes display "E1", -40~-45°C, display -40°C
Short circuit( or more than 120°C ), the first row of the screen flashes displaty "E2", 121-129°C display 120°C
Lower than -10°C, or higher than 100°C, it will not display value behind the decimal point
Refrigeration mode, start temperature > Stop temperature
Heating mode, start temperature < stop temperature
3. Mode button
Press MODE. LCD display: temperature control mode

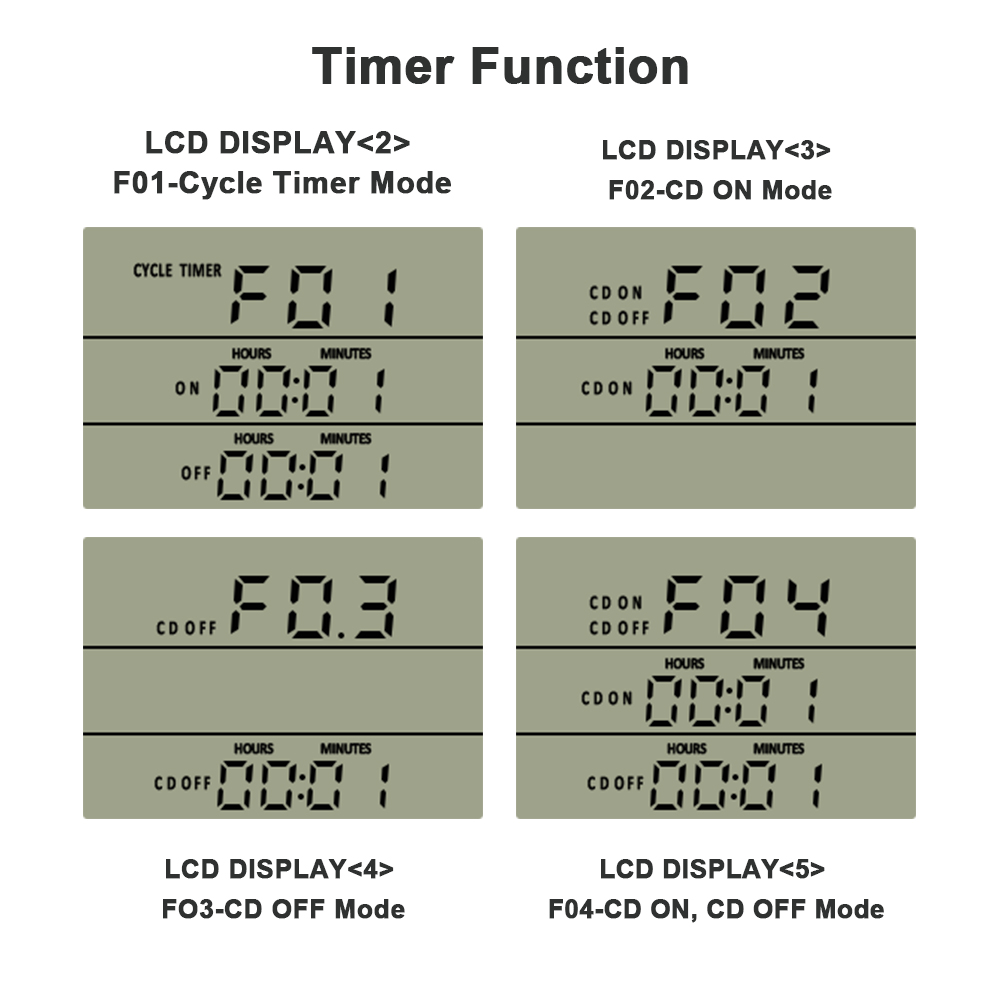

Timing mode F01-F04
